EASEMED | Laparoscopic CO2 -30 L With Standard Accessories | 1 Year Warranty
EASEMED | Laparoscopic CO2 -30 L With Standard Accessories | 1 Year Warranty
Couldn't load pickup availability

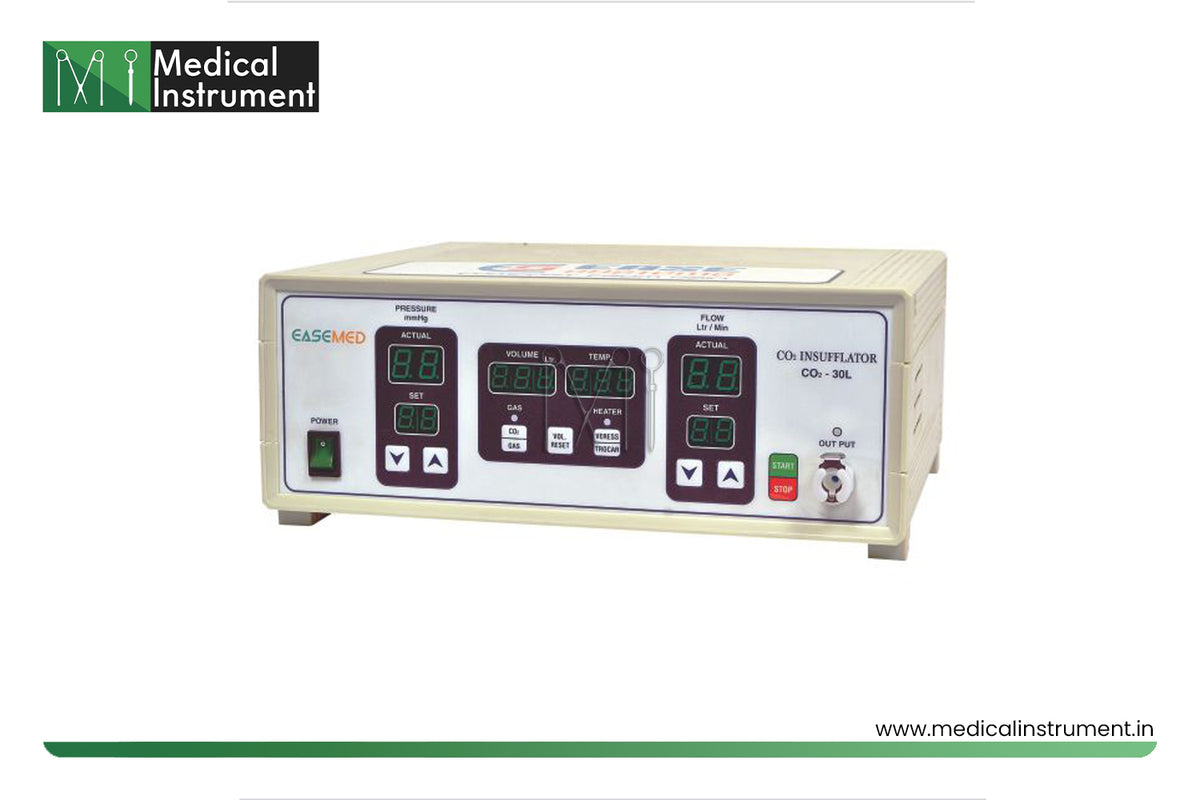

CO2 Insufflator – 30L is integrated with a built-in insufflation program that is specially engineered for rendering comfort and safety to the patients. It features an LCD screen with 7 segment display which shows set & actual value for pressure, flow, and temperature and gas consumption.
This model of insufflator gives an immediate response to all the procedures with its advanced high-speed micro controlled technology and built-in over pressure alarm and pressure release systems.
Features :
- Internal over pressure release valve
- Rapid and continuous delivery of gas
- Immediate response
- User-friendly design
- Compact design
- Highly portable
- Inbuilt safety features
- Trocar & verrles modes
- Display for actual gas consumption & temperature
- Greater accuracy & measurement of CO2
- Advanced high speed micro controller technology
- Over pressure alarm & pressure release systems
Applications :
- ERCP
- Enteroscopy
- Colonoscopy
- EUS
- EGD
Product Details :
- Application:Hospital
Technical Specifications: :
- Gas : CO2 (medical)
- CO2 gas supply systems : Inf 7/16″
- Input pressure min. to max : 2 to 3 bar
- Insufflation pressure min to max : 4 – 30 mm h (to an accuracy of 1 mm Hg)
- Flow rate min to max : 1 to 20 liters /min (model – c02 -2000) : 1 to 30 liters/min (model – lc02 – 3000)
- Type of power supply : 230 vac + 15% @ 50 – 60 Hz
- Protection by fuse : 5a
- Power consumption : 125 w max with warmer of 20 w max
- Output connection : 6 to 7 mm id tube
- Display : 7 segment 16 x 2 LCD
- Keyboard : feathertouch
- Enclosure : ABS plastic box
- Dimension : 260 (l) mm x 290 (w) mm x 105 (h) mm
- Weight : Approx. 2.5 kg
Specifications
Specifications
Shaft size: 5mm x 330mm. Fenestrated bipolar jaw design. Multiple jaw variants available (specify preference at checkout). German-quality build standard.
Shipping & Returns
Shipping & Returns
Ships within 3–5 business days in protective instrument packaging. Returns accepted within 7 days for unused instruments only.
Dimensions
Dimensions
Shaft length: 330mm | Shaft diameter: 5mm. Handle length varies slightly by grip style — details available on request.
Care Instructions
Care Instructions
Clean thoroughly after each training session. Avoid excessive force on the jaw mechanism. Store separately to prevent tip damage from contact with other instruments.
