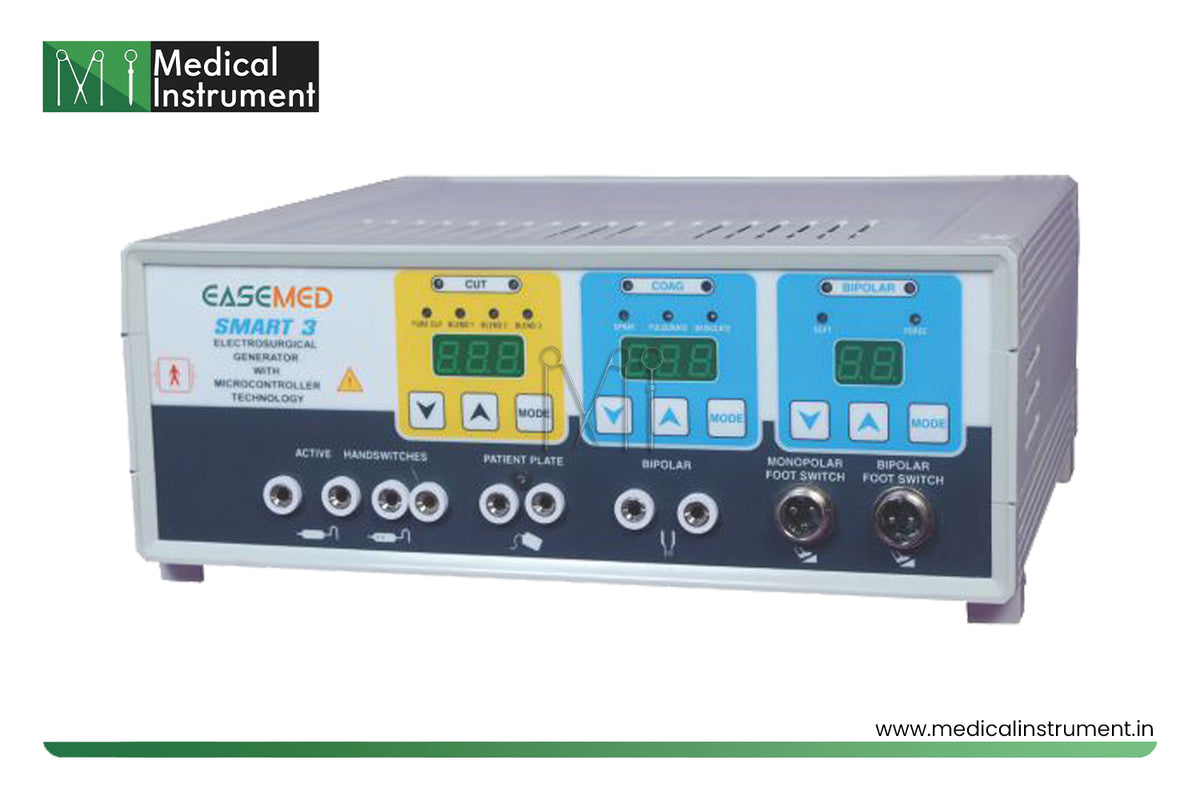

EASEMED | Laparoscopic SMART 3 300W Digital Cautery Electro Surgical Unit With Standard Accessories | 1 Year Warranty
EASEMED | Laparoscopic SMART 3 300W Digital Cautery Electro Surgical Unit With Standard Accessories | 1 Year Warranty
Couldn't load pickup availability
Electro Surgical Unit-Smart 3 is a new generation electrosurgical unit integrated with microprocessor controls. The equipment ensures complete safety to the surgeon while operating. Combines the excellent performance of monopolar (cut & coag) and bipolar modes, this ESU is specially developed for specific surgeries where high precision and reliability is paramount. There is an added feature in it that is responsible for a good hemostasis effect with minimum cutting effect.
Features :
- Automatically stops energy delivery as soon as the seal the cycle is complete
- Minimum cutting effect
- Feedback-controlled response system
- Bipolar output with a nonsparking characteristic
- Prompt start even in irrigated procedures
- Spray coagulation
- Pure and smooth cut
- Provides good hemostasis effect
Applications :
- Microsurgery
- Neurosurgery
- Laparoscopy
Technical Specifications :
Cut :
| Mode | Programs | Power | Load | Operating Frequency |
| Pure | 99 | 300 W | 500 Ω | 480 kHz |
| Blend 1 | 99 | 250 W | 500 Ω | 480 kHz |
| Blend 2 | 99 | 200 W | 500 Ω | 480 kHz |
| Blend 3 | 99 | 150 W | 500 Ω | 480 kHz |
Coag :
| Mode | Programs | Power | Load | Operating Frequency |
| Spray | 99 | 120 W | 500 Ω | 480 kHz |
| Fulgurate | 99 | 150 W | 500 Ω | 480 kHz |
| Dessicate | 99 | 150 W | 500 Ω | 480 kHz |
Bipolar :
| Mode | Programs | Power | Load | Operating Frequency |
| Soft | 99 | 80 W | 100 Ω | 480 kHz |
| Force | 99 | 80 W | 100 Ω | 480 kHz |
Specifications
Specifications
Shaft size: 5mm x 330mm. Fenestrated bipolar jaw design. Multiple jaw variants available (specify preference at checkout). German-quality build standard.
Shipping & Returns
Shipping & Returns
Ships within 3–5 business days in protective instrument packaging. Returns accepted within 7 days for unused instruments only.
Dimensions
Dimensions
Shaft length: 330mm | Shaft diameter: 5mm. Handle length varies slightly by grip style — details available on request.
Care Instructions
Care Instructions
Clean thoroughly after each training session. Avoid excessive force on the jaw mechanism. Store separately to prevent tip damage from contact with other instruments.
