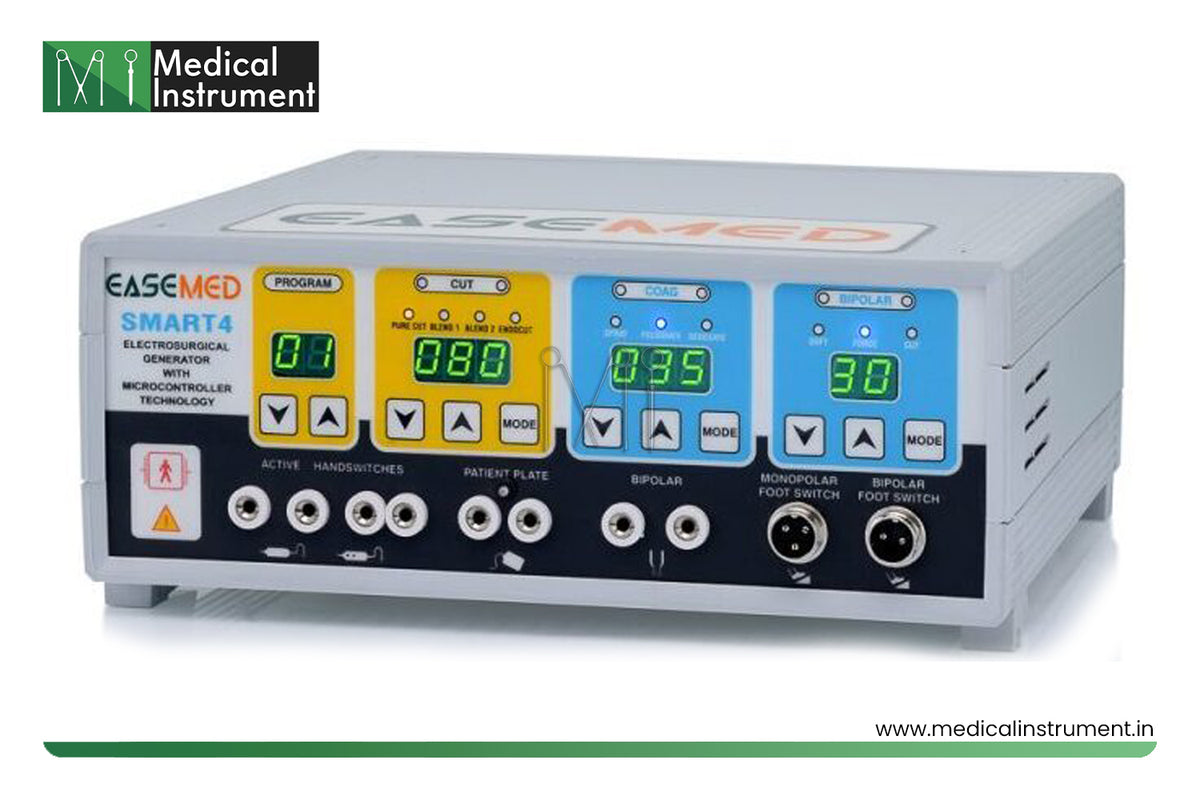

EASEMED | Laparoscopic SMART 4 400W Prog Digital Cautery Electro Surgical Unit With Standard Accessories | 1 Year Warranty
EASEMED | Laparoscopic SMART 4 400W Prog Digital Cautery Electro Surgical Unit With Standard Accessories | 1 Year Warranty
Couldn't load pickup availability
We introduce in the medical sector a new microprocessor based Electro Surgical Generator-SMART 4. It combines excellent performance of monopolar (cut & coag) and bipolar modes. Integrated with microprocessor controls, this ESU provides user safety to the user during surgery and is ideal for surgeries that require high precision and reliability. Spray coagulation is an internal part of this surgical unit that gives a good hemostasis effect with minimum cutting effect.
Features :
- Feedback-controlled response system
- Automatically stops energy delivery as soon as the seal cycle is complete
- Minimum cutting effect
- Spray coagulation
- Pure and smooth cut
- Bipolar output with a non sparking characteristic
- Prompt start even in irrigated procedures
- Provides good hemostasis effect
Applications :
- Micro- surgery
- Laproscopy surgery
- Neuro surgery
Technical Specifications :
Cut :
| Mode | Programs | Power | Load | Operating Frequency |
| Pure | 99 | 400 W | 500 Ω | 480 kHz |
| Blend 1 | 99 | 250 W | 500 Ω | 480 kHz |
| Blend 2 | 99 | 200 W | 500 Ω | 480 kHz |
| Endocut | 99 | 99 % | 500 Ω | 480 kHz |
Coag :
| Mode | Programs | Power | Load | Operating Frequency |
| Spray | 99 | 120 W | 500 Ω | 480 kHz |
| Fulgurate | 99 | 150 W | 500 Ω | 480 kHz |
| Dessicate | 99 | 150 W | 500 Ω | 480 kHz |
Bipolar :
| Mode | Programs | Power | Load | Operating Frequency |
| Soft | 99 | 80 W | 100 Ω | 480 kHz |
| Force | 99 | 80 W | 100 Ω | 480 kHz |
| Cut | 99 | 100 W | 100 Ω | 480 kHz |
Other Parameters :
| Display | 7 segment LED |
| Dimension (wxhxd) | 290mmx105mmx260mm |
| Weight | 4kg |
| Keyboard | Feathertouch |
| Input supply voltage | 230vac +15%@50/60hz |
Specifications
Specifications
Shaft size: 5mm x 330mm. Fenestrated bipolar jaw design. Multiple jaw variants available (specify preference at checkout). German-quality build standard.
Shipping & Returns
Shipping & Returns
Ships within 3–5 business days in protective instrument packaging. Returns accepted within 7 days for unused instruments only.
Dimensions
Dimensions
Shaft length: 330mm | Shaft diameter: 5mm. Handle length varies slightly by grip style — details available on request.
Care Instructions
Care Instructions
Clean thoroughly after each training session. Avoid excessive force on the jaw mechanism. Store separately to prevent tip damage from contact with other instruments.
